The UDP75 is ideally suited for numerous applications both indoors and outdoors where visual aesthetics need to be maintained and yet still give good
weathering and durability. This product with its high water flow of 545 L/M allows for it to be used in driveways, commercial kitchens, wineries, pool and landscaping projects where high-quality is required.
Base made of PVC, fluted for extra strength and weight.
Capable of withstanding domestic vehicles when set in concrete.
Smooth PVC base enhances water flow and assists self-cleaning. The alloy top for the 75mm drain comes with a 3mm fall to the centre aiding the water collection to the drain base.
All fittings are easily connected using PVC solvent glue.

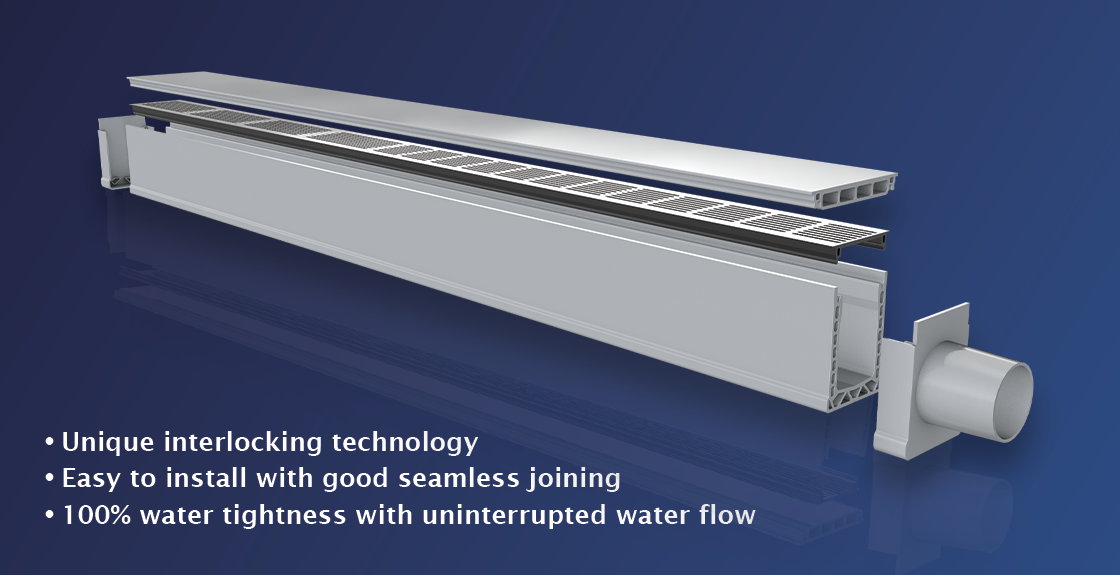

PVC channel will maintain its form during construction due to a “construction cover” insert which is provided with each length.
Due to the design of the channel base, the drain should never move or float when set into concrete.

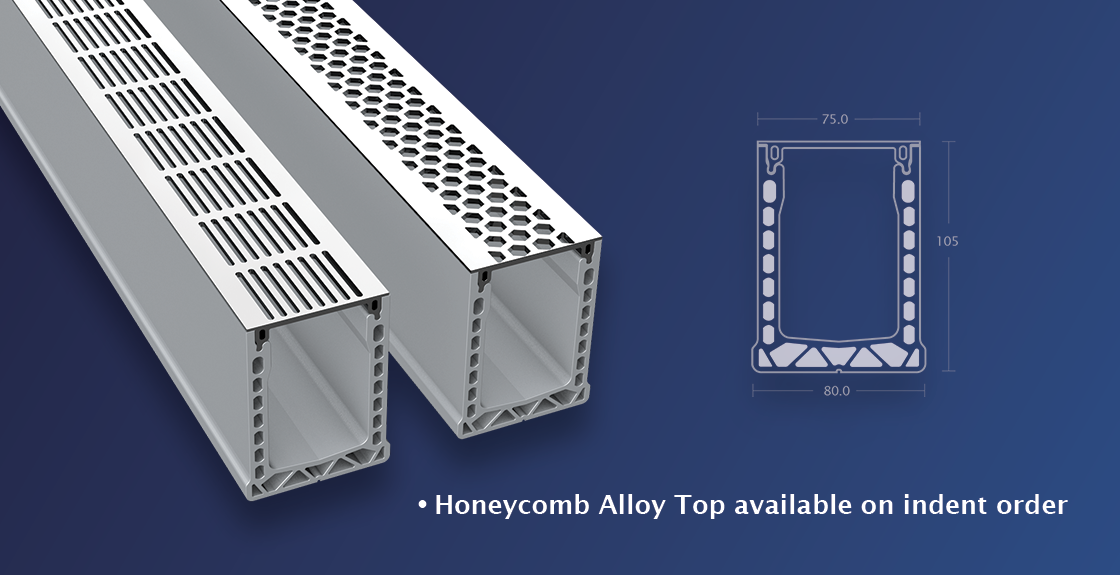

Top grating is extruded aluminium, anodized to marine grade specifications and is removable for cleaning purposes.
Abrasive resistant sandblasted top grating also available.
Accessories including 90 degree corners, lockable top, side and bottom outlets and a 250mm cleaning section are also available.
